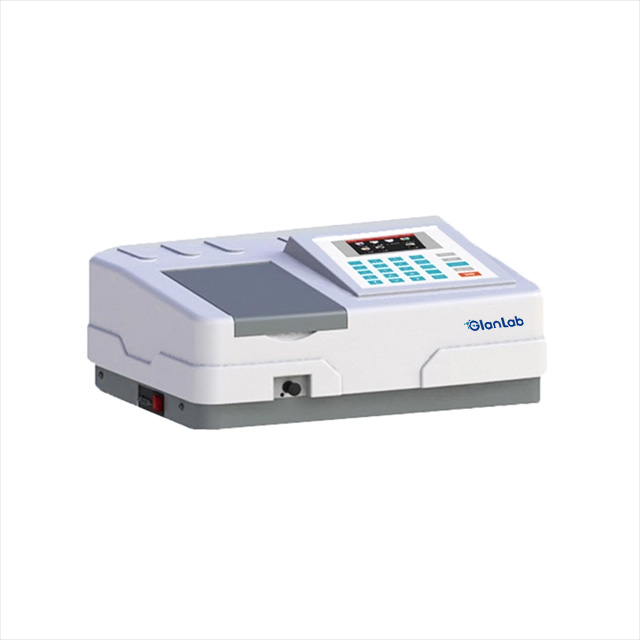

BK-D560 UV/VIS Double Beam Scaning Spectrophotometer GlanLab

^{This spectrophotometer features a safe environmental deuterium lamp, real-time lamp lifetime monitoring, and socket-type, easily replaceable lamps. It includes a GLP self-check function, automatic calibration, and an SiO2 coated optical mirror to minimize external interference. With capabilities for photometry, quantitative analysis, kinetics, multi-wavelength testing, scanning, and DNA/protein analysis, it's ideal for chemical, pharmaceutical, biochemistry, environmental, food quality, and medical applications.}

Availability:

Quantity:



Inquiry Add to Basket

Product Description

Features:

Environmental deuterium lamp: prevents ozone inhalation for safer operation.
Lamp lifetime monitoring: real-time monitoring of Deuterium and Tungsten lamp lifetimes.
Socket-type lamps: easily replaceable Deuterium and Tungsten lamps with socket-type design.
GLP self-check function: automatically checks wavelength and photometry accuracy, provides test reports, and includes power-off protection.
Automatic calibration: performs wavelength calibration, lamp source change, and dark current calibration automatically.
SiO2 coated optical mirror: reduces external interference, enhancing measurement accuracy
Comprehensive analysis: this spectrophotometer offers photometry, quantitative analysis, kinetics, multi-wavelength testing, scanning, and biological analysis (DNA/protein methods), providing versatile and efficient solutions for various analytical applications.

Parameters

Model	BK-D560	BK-D580	BK-D590
Optical System	Double Beam, Grating 1200 lines/mm
Wavelength Range	190~1100nm
Spectral Range	1.8nm	1nm	0.5，1，2，4，5nm
Wavelength Accuracy	± 0.3nm
Wavelength Repeatability	≤ 0.2nm
Photometric Accuracy	± 0.002A (0~0.5Abs), ± 0.004A (0.5~1.0Abs), ± 0.3% T (0~100% T)
Photometric Repeatability	0.001Abs (0~0.5Abs), 0.002Abs (0.5~1.0Abs), ≤ 0.2% T (0~100% T)
Stray Light	≤ 0.04 T @ 360nm; 220nm
Stability	± 0.0003A / h @ 500nm
Baseline Flatness	± 0.0005A
Noise	± 0.0002Abs
Display	65 thousand true color 7 inch TFT LCD(480 *800)
Photometric Mode	T, A, C, E
Photometric Range	0~200% T,-0.301~3.0A
Detector	Silicon Photodiode
Light Source	Deuterium Lamp, Tungsten Lamp
Input	Membrane Keypad
Output	USB-A*2 Print and data output USB-B Connect PC
Standard Accessories	Scanning software,1cm standard single slot cuvette holder,1cm glass cuvette4,1cm quartz cuvette2
Optional Accessories	1cm standard single slot cuvette holder, long optical path cuvette holder, cuvette, microcuvette, test tube type absorber rack, solid sample holder, deuterium lamp, tungsten lamp,quadruple cuvette holder, printer, four-slot water bath type constant temperature absorptionpool, X-Y Adjustable Micro Absorption Pool, single bath type constant temperature absonrption pool, program-controlled thermostatic absorption pool seat, 8 racks, reflectionaccessories
Power Supply	AC110V/220±10%, 60/50Hz
Packing Size(mm)	740570440
Gross Weight(kg)	25
