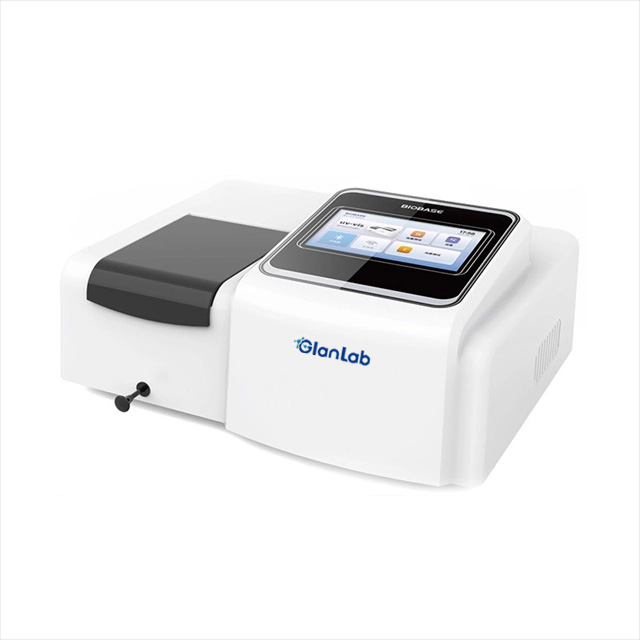

BK-UV1600G/BK-V1600G UV/VIS Spectrophotometer GlanLab

Optical System

Single beam, grating 1200L/mm

Wavelength

190~1100nm

325~1100nm

Spectral Bandwidth

4nm

Wavelength Accuracy

±1.5nm

Wavelength Repeatability

≤0.2nm

Photometric Accuracy

+0.002Abs (0-0.5Abs), ±0.004A (0.5-1.0Abs), ±0.4%T (0-100%T)

Photometric Repeatability

0.001Abs(0-0.5Abs), 0.002Abs(0.5-1.0Abs), <0.2%T (0-100%T)

Stray Light

≤0.05%T(220nm, 360nm)

Stability

±0.001A/h(500nm)

Photometric Range

-0.301-3.0A

0-200%T

0-9999C

Photometric Mode

A T C E

Wavelength Setting

Automatic

Output

RS232 printer data output, USB-A connection, wireless printing, mobile phone PC connection

Detector

Imported silicon photodiode

Light Source

Deuterium lamp, tungsten lamp

Tungsten lamp

Standard Accessories

4*glass cuvette, 2*quartz cuvette

4*glass cuvette

Power Supply

100~220V, 50/60Hz

External Size

466*365*200mm

Net Weight

11.25kg

Packing Size

590*480*315mm

Gross Weight

15.4kg

15kg
