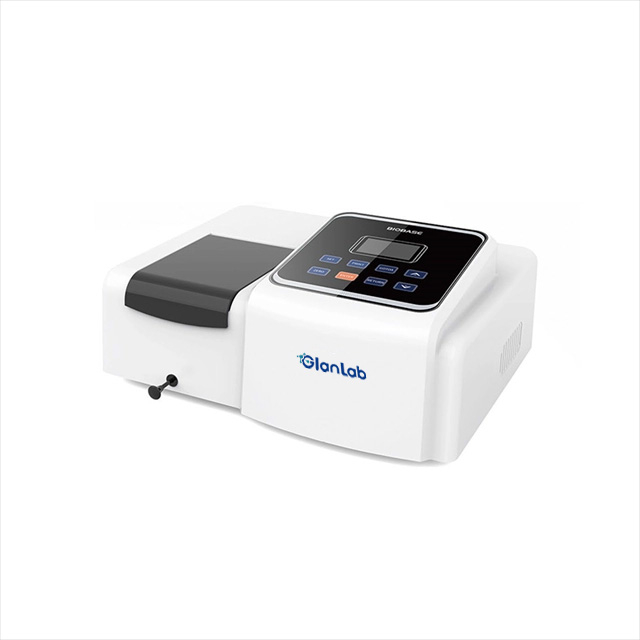

BK-UV1000G/BK-V1000G Laboratory Equipment Analysis Machine UV/VIS Spectrophotometer GlanLab

This spectrophotometer analyzes the absorption spectrum of substances to study their composition, structure, and interactions. With a wide wavelength range, high sensitivity, and simple operation, it is easy to use and features a compact and attractive design. It is widely applicable across industries such as chemicals, pharmaceuticals, biochemistry, metallurgy, textiles, materials, environmental protection, and medical laboratories. As an essential tool for quality control, it plays a key role in analytical testing and is a must-have instrument in conventional laboratories.

Availability:

Quantity:



Inquiry Add to Basket

Product Description

Features:

High-resolution grating: equipped with a 1200L/mm grating for precise and detailed spectral analysis.
Long-life lamps: uses imported Deuterium and Tungsten lamps, ensuring long lifespan and stable performance.
Integrated LCD display: built-in LCD display allows direct viewing of results without needing an external computer.
Wide voltage range: supports a broad input voltage range, enhancing versatility for different operating conditions.
Power-on self-test: performs an automatic system check upon powering up, ensuring all components are functioning properly.
High sensitivity photoconverter: features a high sensitivity photoconverter for accurate and reliable measurements, even with low concentrations.
Ease of use: simple operation with an intuitive interface, making it accessible for both novice and experienced users.
Compact and aesthetic design: the instrument features a compact, visually appealing design, making it easy to integrate into any laboratory or workspace.

Parameters

Model	BK-UV1000G	BK-V1000G
Optical System	Single beam, grating 1200L/mm
Wavelength	200-1020nm	325-1020nm
Spectral Bandwidth	4nm
Wavelength Accuracy	±1.5nm
Wavelength Repeatability	≤0.2nm
Photometric Accuracy	+0.002Abs (0-0.5Abs), ±0.004A (0.5-1.0Abs), ±0.4%T (0-100%T)
Photometric Repeatability	0.001Abs(0-0.5Abs), 0.002Abs(0.5-1.0Abs), <0.2%T (0-100%T)
Stray Light	≤0.1%T(220nm,360nm)
Stability	±0.001A/h(500nm)
Photometric Range	-0.301-3.0A 0-200%T 0-9999C
Photometric Mode	A T C E
Wavelength Setting	Automatic
Output	RS232 printer data output, USB-B connection
Detector	Imported silicon photodiode
Light Source	Deuterium lamp, tungsten lamp	Tungsten lamp
Standard Accessories	4glass cuvette, 2quartz cuvette	4*glass cuvette
Power Supply	100-220V 50/60Hz
External Size	466384201mm
Net Weight	11.6kg
Packing Size	590480315mm
Gross Weight	14.4kg	14kg
