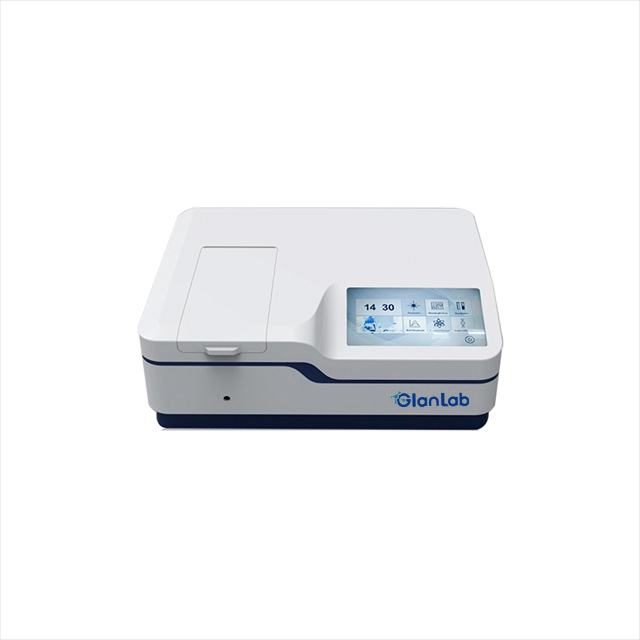

BK-D9X Laboratory Biochemistry Analyzer Spectrophotometer GlanLab

This UV-Vis spectrophotometer features a long-lasting pulsed xenon lamp that operates for at least seven years without replacement, supported by unique optical, circuitry, and structural designs, as well as advanced manufacturing processes and strict quality management for reliable performance. A built-in microcomputer handles data processing, while a large color display with a graphical interface and intuitive menu prompts ensures user-friendly operation. Ideal for applications in pharmaceutical analysis, environmental testing, food quality control, and materials research, this instrument provides precise, stable measurements across diverse laboratory needs.

Availability:

Quantity:



Inquiry Add to Basket

Product Description

Features:

Long-lasting light source: employs a durable pulsed xenon lamp, capable of functioning normally for at least seven years without replacement.
Advanced optical and circuitry design: unique optical, circuitry, and structural designs enhance performance and reliability.
Microcomputer-controlled user interface: equipped with a 10.1-inch touchscreen color screen, graphical interface, and intuitive menu prompts, managed by a built-in microcomputer for efficient data processing and user-friendly operation.
Versatile data storage: supports U disk storage with export options in Excel, TXT, and image formats (*.csv, *.qua, *.tet, *.bmp).
Comprehensive data output options: includes RS-232C for printing, USB for online connection and U disk storage, with 32GB internal memory.
Powerful processor and data capacity: equipped with a 32-bit Cortex M3 processor (120MHz), storing up to 5,000 test data entries or 500 working curves.
Enhanced stability with suspension optical system: designed with a thickened aluminum base to reduce impact from vibration or deformation.
Double-layer design for separation: the optical path and circuitry are completely separated, improving system stability and performance.

Parameters

Model	BK-D9X
Optical System	Double beam, 1200 lines/mm holographic grating
Spectral Bandwidth	1.0/2.0nm
Wavelength Range	190~1100nm
Wavelength Accuracy	±0.3nm
Wavelength Repeatability	0.1nm
Wavelength Resolution	0.1nm
Data Display	10-inch LCD color touchscreen
Stray Light	≤0.05%TT at 220nm, 360nm
Photometric Range	0~200%T, -0.3~3.0A, 0~9999C (0~9999F)
Maximum Allowable Error of Transmittance	±0.3%T
Transmittance Repeatability	≤0.1%T
Baseline Flatness	±0.001Abs
Drift	≤0.1%T
Noise	0%≤0.05%T, 100%≤0.1%T
Light Source	Xenon Lamp
Power Supply Voltage Adaptability	±0.1%
Data Output	RS-232C serial port (printing), USB drive (online connection), USB HOST (U disk)
Processor	Cotex_M3, main frequency 120 MHz
Supply Power	220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional)
External Size（WDH）mm	580450215
Standard Accessories	4glass cuvette, 2quartz cuvette, PC Software
Package Size（WDH）mm	800645265
Net Weight(kg)	21
Gross Weight（kg）	26
