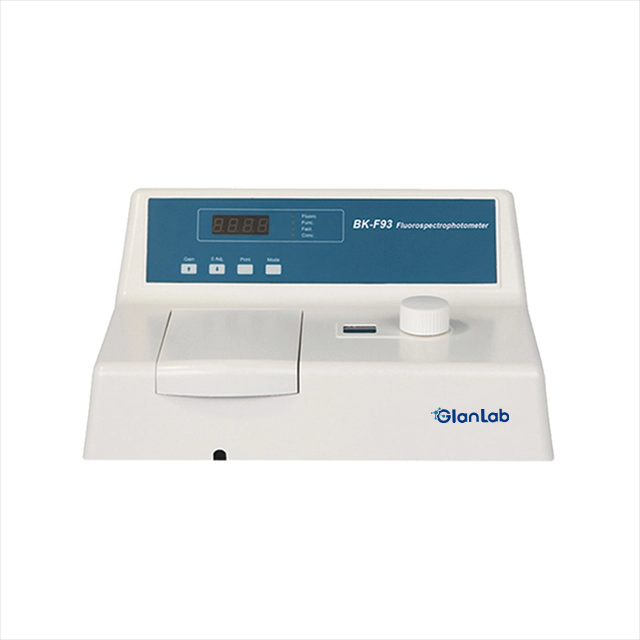

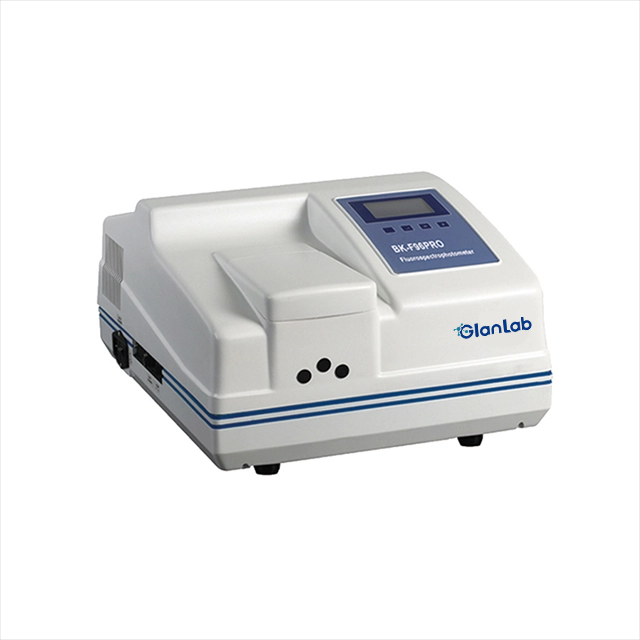

Model | BK-F96PRO | BK-F93 |
Light Source | Hamamatsu 150W Xenon lamp | LED |
Exciting Optical Filters | Interference optical filter a) Standard set is equipped with an interference optical filter of
central wavelength at 365nm and 10nm bandwidth b) An optional interference optical filer of 25mm diameter of
wavelength of 250-700nm can be provided on users demand. | Interference optical filter (10nm bandwidth) |
Emission Monochromator | C-T diffraction grating（Em 200~900nm, bandwidth 10nm） | 360~650nm (C-T diffraction grating) |
Wavelength Accuracy | ±1nm | ±2nm |
Wavelength Repeatability | ≤0.5nm | ≤1nm |
Sensitivity | Raman peak of water in 1 cm quartz fluorescence cuvette with S/N≥150 | 1*10-9 g/ml (Standard aqua of the sulfuric acid Quinine, 12nm bandwidth) |
Linear measurement(r) | ≥0.995 | ≥0.995 |
Stability | better than 1.5%/10min | better than 3%/10min |
Response Time | (0.1~4)s 6 stages adjustable | (0.1~4)s |
Fluorescence display value | 0.00~600.00 | 0.00~250.00 |
Power Supply | AC110/220V±10%, 60/50Hz |
Packing Size(mm) | 550*510*365 | 450*420*280 |
Gross Weight(kg) | 14 | 9 |
Standard Accessories
| 365nm filter(Preassembled), 1 pc F96PRO software package, 1 pc USB interface, 1 pc Quartz fluorescence sample cell10mm, 1 pair | RS232 serial port, Glass fluorescence cuvette 10mm 1 pair |
Optional Accessories | 200~700nm interference optical filter (φ25mm) Quartz fluorescence sample cell 10mm Personal computer Dedicated serial interface printer | Data processing software package (pack, for PC), Printer(Serial printe |
