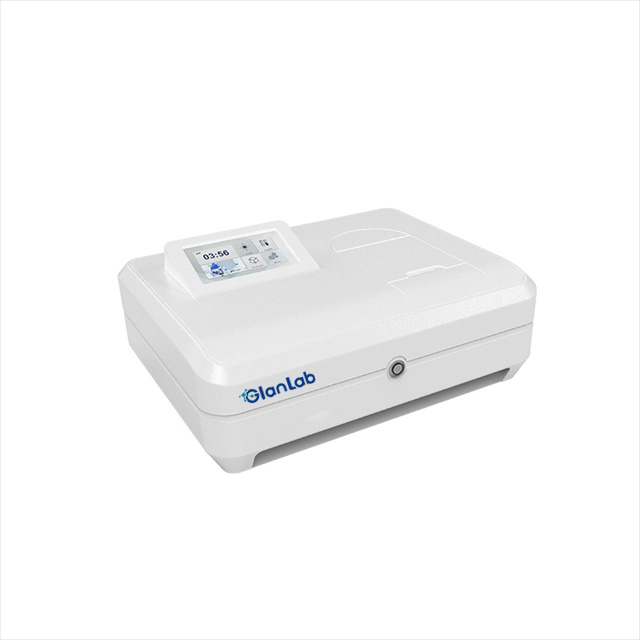

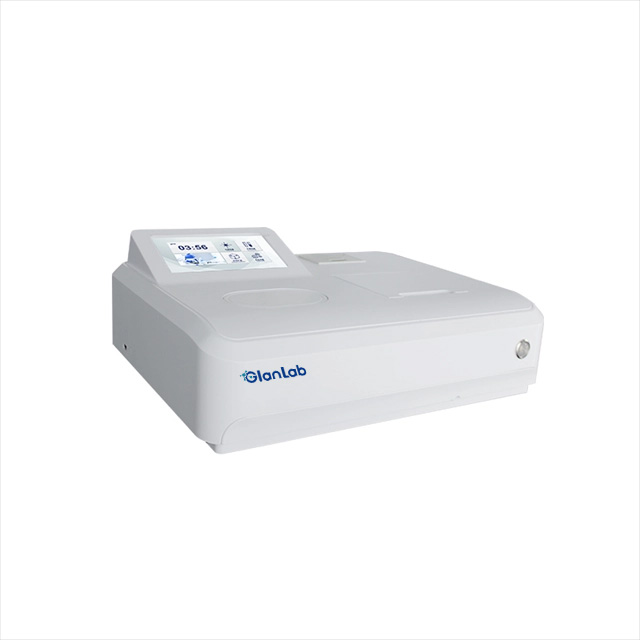

BK-UV/V Series UV/VIS Spectrophotometer GlanLab

BK-UV/V series spectrophotometer is a new generation of high-performance, high-reliability spectrophotometer series instruments, select high-performance optical accessories, high-precision 24-bit AD chip (traditional economic analog), mainstream wifi iot hardware.The economical instrument is intelligent, high performance, low noise, high stability and so on. Widely used in chemical, pharmaceutical, biochemistry, metallurgy, light industry, textile, materials, environmental protection, medical laboratory and education and other industries.

Availability:

Quantity:



Inquiry Add to Basket

Product Description

Features:

7-inch high-definition touch screen: features a 7-inch 1024x768 high-definition touchscreen for easy and clear operation.
Cloud storage and app integration: supports cloud storage with WeChat integration for convenient data access via a mini-program.
High-resolution C-T monochromator: equipped with a high-precision C-T monochromator and a 24-bit AD chip, providing low stray light (<0.1T%), high accuracy, and stability (0.002A).
Large storage capacity: capable of storing 2000 data points and 96 working curves, enhancing convenience for users.
Comprehensive connectivity: includes USB, WiFi, and Bluetooth modules for versatile data transfer options.

Parameters

Model	BK-V2001	BK-UV2002	BK-V2003	BK-UV2004	BK-UV2006
Display	7" high definition 1024*768 touch screen
Optical System	Single beam
Monochromator	C-T Monochromator, Blazed Holographic Grating 1200 lines/nm
Wavelength Range	340~1020nm	195~1020nm	320~1100nm	190~1100nm	190~1100nm
Bandwidth	4nm(2nm optional)				2nm
Wavelength Setting	Manual		Auto
Wavelength Accuracy	±2nm		±1nm		±0.3nm
Wavelength Reproducibility	±1nm		±0.5nm		±0.1nm
Stray Light	0.1%T				0.05%T
Photometric Range	0~200%T, -0.3~3.0A
Photometric Accuracy	±0.5%T, ±0.004Abs (0~0.5A), ±0.008Abs (0.5~1.0A)
Photometric Reproducibility	±0.5%T, ±0.004Abs (0~0.5A), ±0.008Abs (0.5~1.0A)
Photometric Stability	±0.15%T, ±0.002Abs (0~0.5A), ±0.004Abs (0.5~1.0A)
Lamp Switch	Auto, 340nm		Auto, 340nm (Settable)
Stability	0.002A (500nm, 3min)				0.001A (500nm, 3min)
Noise	0.15%T
Detector	Imported silicon photodiode
Output	USB & Bluetooth
WIFI Module	Yes
Wirless Printing	Yes (Bluetooth printer is optional)
PC Software	Optional
IoT Module	Yes
Supply Power	220V, 50/60Hz; 110V, 50/60Hz(Optional)
External Size(WDH)mm	450370190	450370190	450370190	450370190	530420230
Package Size(WDH)mm	520450300	520450300	520450300	520450300	700580340
Net Weight(kg)	7	9	7	9	15
Gross Weight(kg)	9	11	9	11	19
