Availability: | |
---|---|
Quantity: | |
Features:
10.1-inch full-color touchscreen display: a 10.1-inch full-color touch screen for direct display of scanning curves and graphs without the need for a computer.
Connectivity and data export: USB and Bluetooth support for wired and wireless storage, along with one-click screenshot functionality for real-time data export.
High-performance processor: equipped with an advanced A6 core processor, and supports optional mouse and keyboard for easy operation.
Nucleic acid and protein detection: rapid nucleic acid concentration and protein analysis with the ability to assess nucleic acid extraction purity.
Analysis modes: supports both qualitative and quantitative analysis for testing unknown substances and determining known sample concentrations.
Optional software and printer: optional upper-computer software and printer for enhanced data management and output.
Parameters

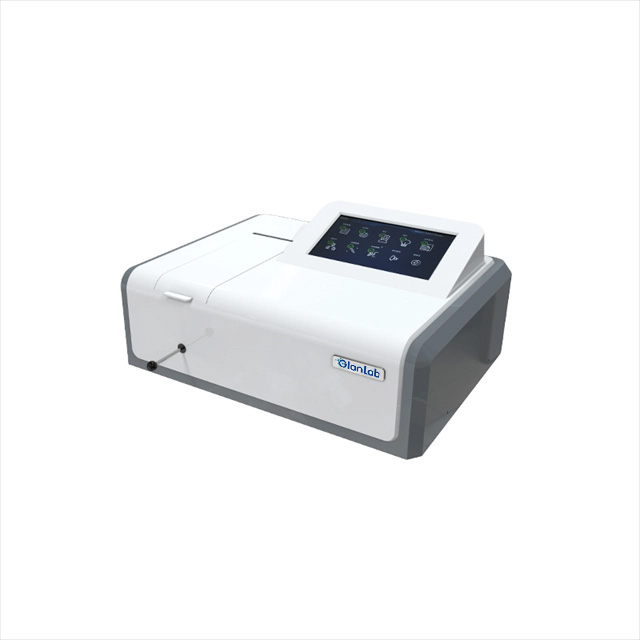

Model | UV-1100 |
Display | 10.1-inch LCD touch screen |
Optical System | Single beam |

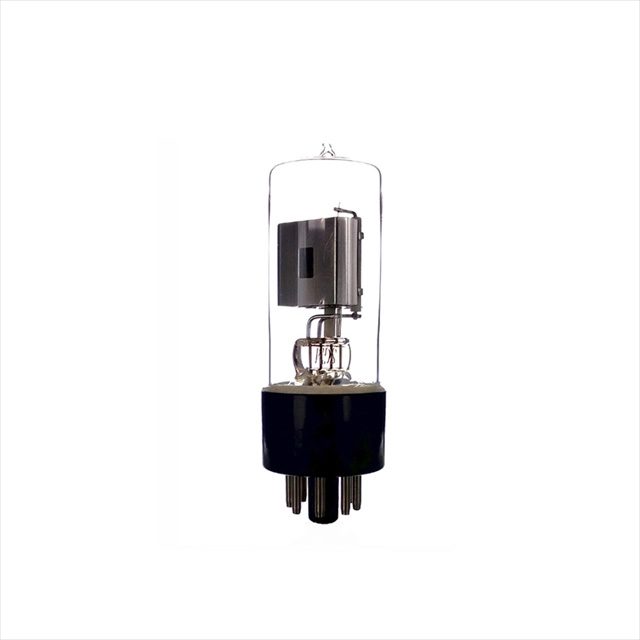

Light Source | International famous deuterium lamp, tungsten lamp |
Wavelength | 190nm-1100nm |
Stray Light | 0.05% (220nm) |
Spectral Bandwidth | 2nm |
Wavelength Accuracy | Full wavelength 0.3nm(656.1nm 0.1nm) |
Wavelength Repeatability | 0.1nm |
Transmittance Accuracy | 0.3%T |
Photometric Mode | Transmittance, absorbance, concentration, energy |
Interface | RS-232 USB |
Power Supply | AC220V 50/60Hz, 110V 60Hz (optional) |
External Size (L*W*H) | 562*520*260mm |
Net Weight | 21kg |
Package Size (L*W*H) | 612*522*322mm |
Gross Weight | 24kg |
